Setting up an L2TP/IPsec VPN connection on MacOS

How to set up an L2TP/IPsec VPN connection on MacOS

To set up a VPN, go to System Preferences

file

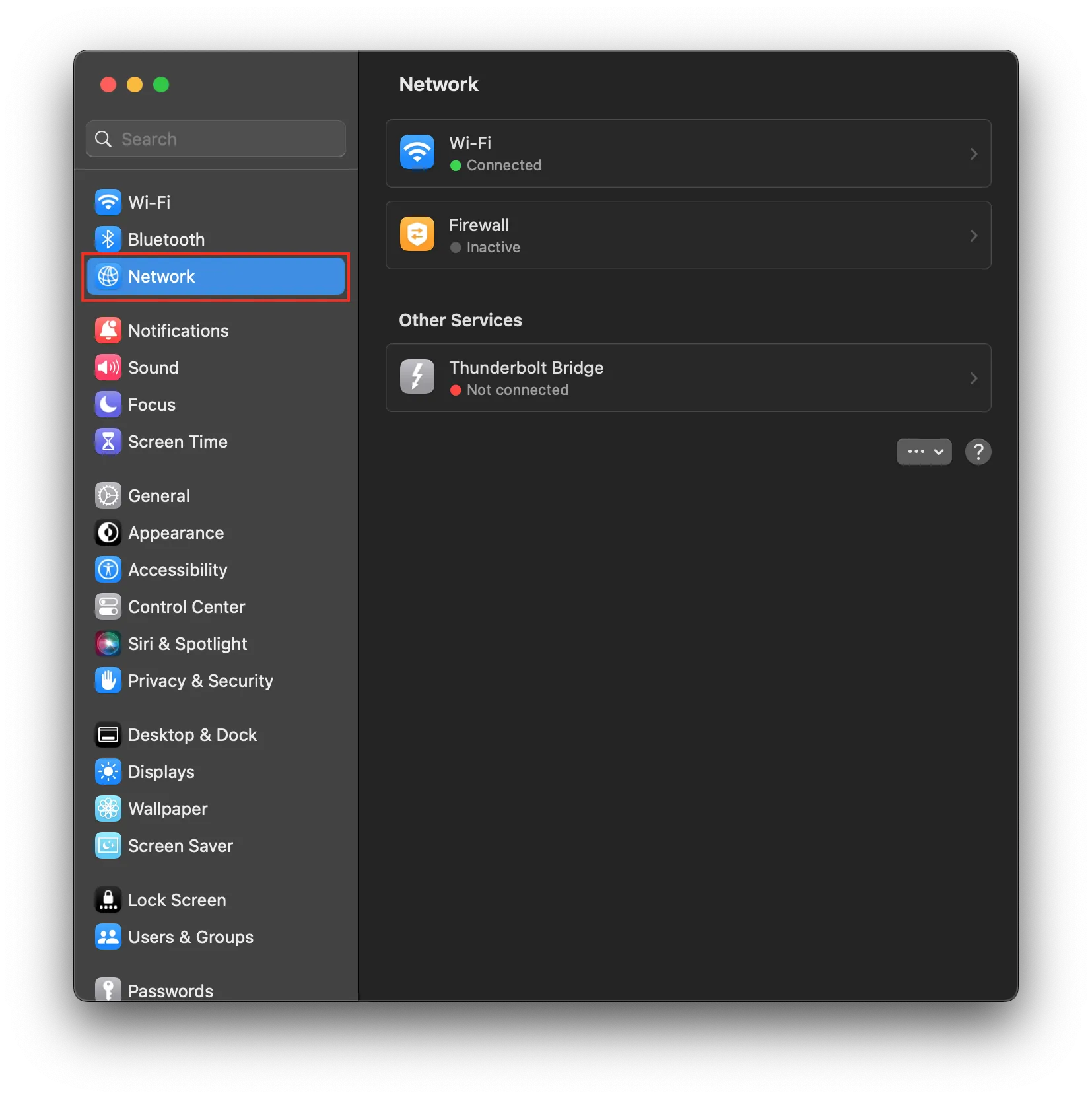

Then go to Network

file

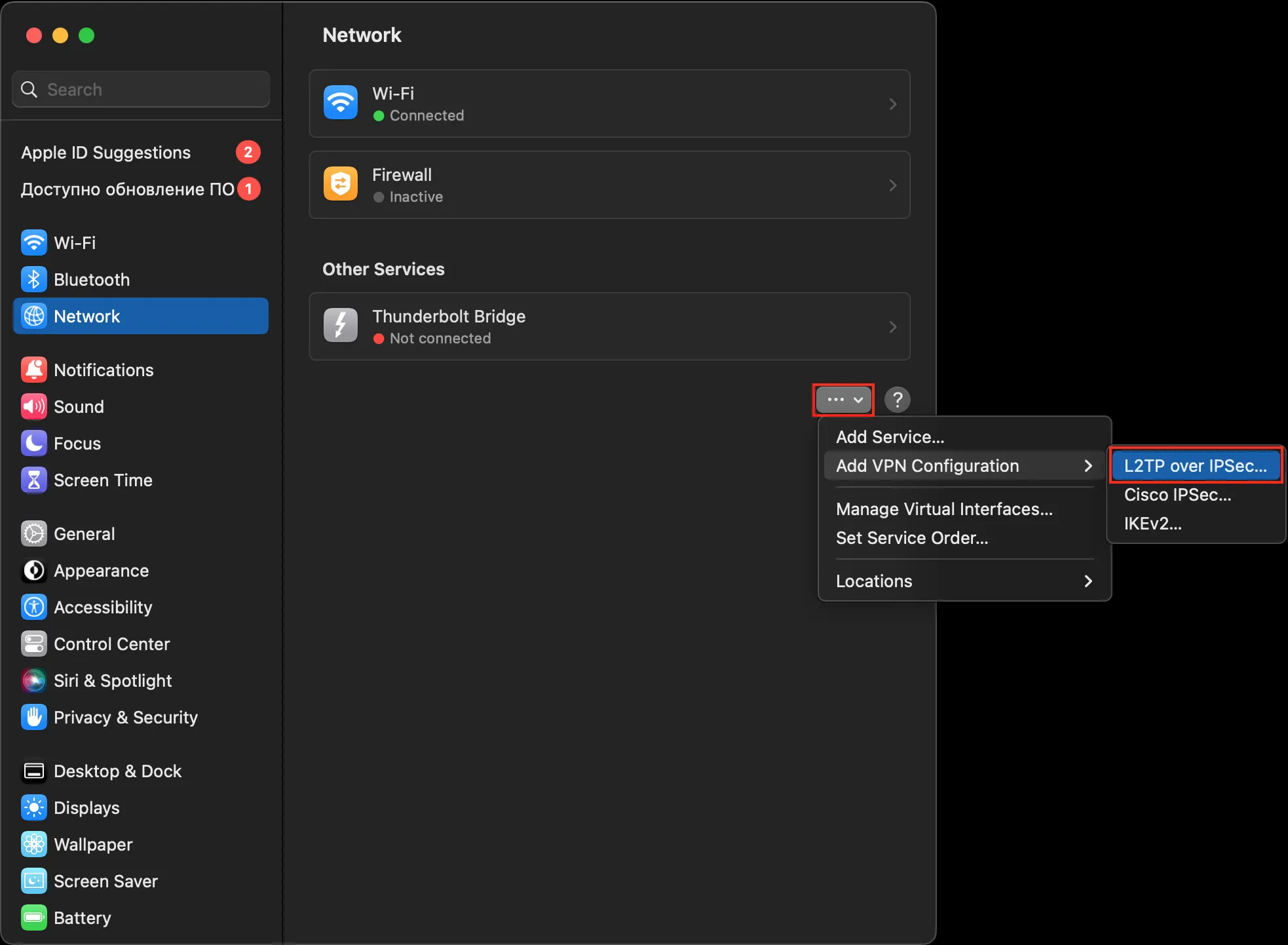

Press "+" to add a new VPN connection

file

In the window that appears, fill in the fields:

  1. Interface - VPN
  2. Type of VPN - L2TP over IPSec
  3. Service name - FornexVPN (you can use any service name)

After filling click Create button

file

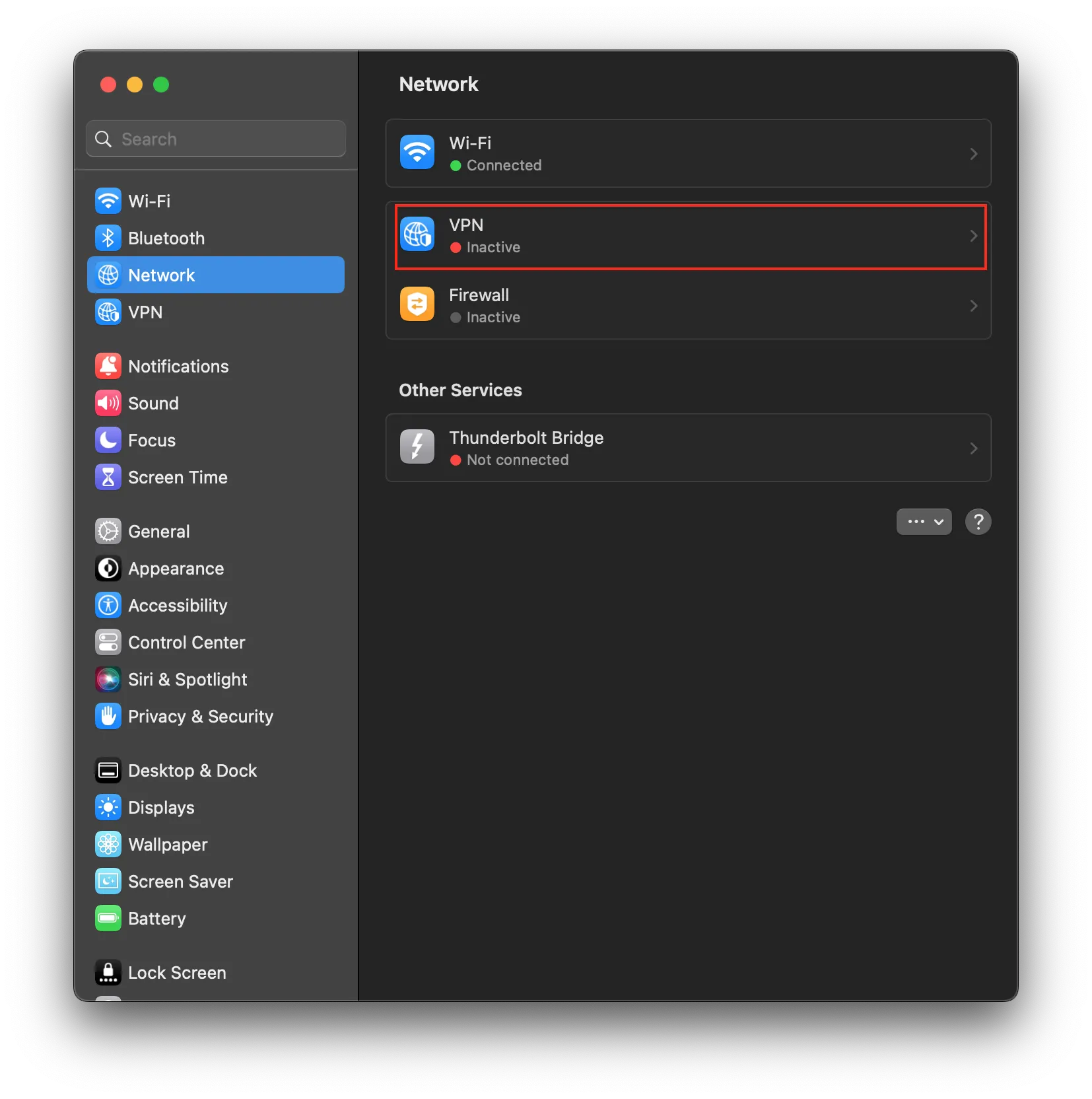

In the window with the connection settings, you need to fill in the following data:

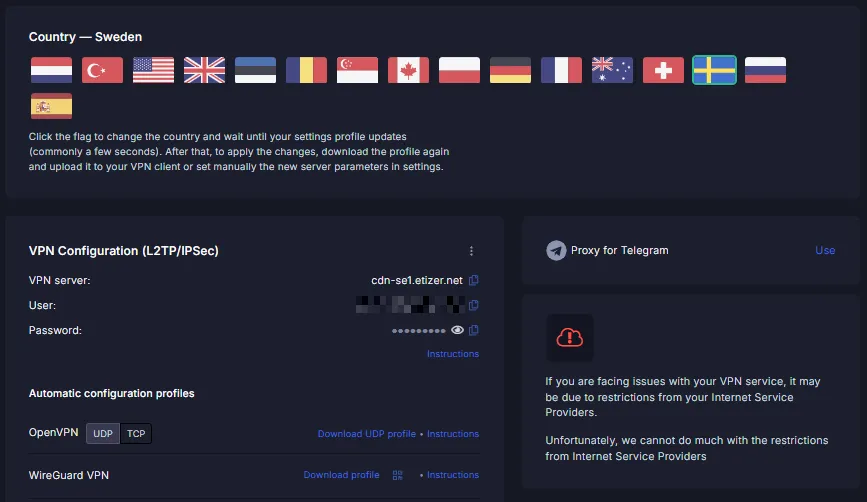

  1. Server address - the address that was given to you when you ordered the VPN service. It can be found in our billing in the Orders section.
  2. Account name - the name you were given when you ordered the service.

file

After filling in, click on Authentication Settings

file

In the window that opens, you must enter the password you received when ordering, and enter Shared Secret - FornexVPN. Then press OK.

Note

The Shared Key can only be entered as specified in this article FornexVPN and no other key can be used.

file

You just have to click the More button

file

In the opened window in the tab Options check the flag Send all traffic via VPN as shown on the screenshot and click OK.

file

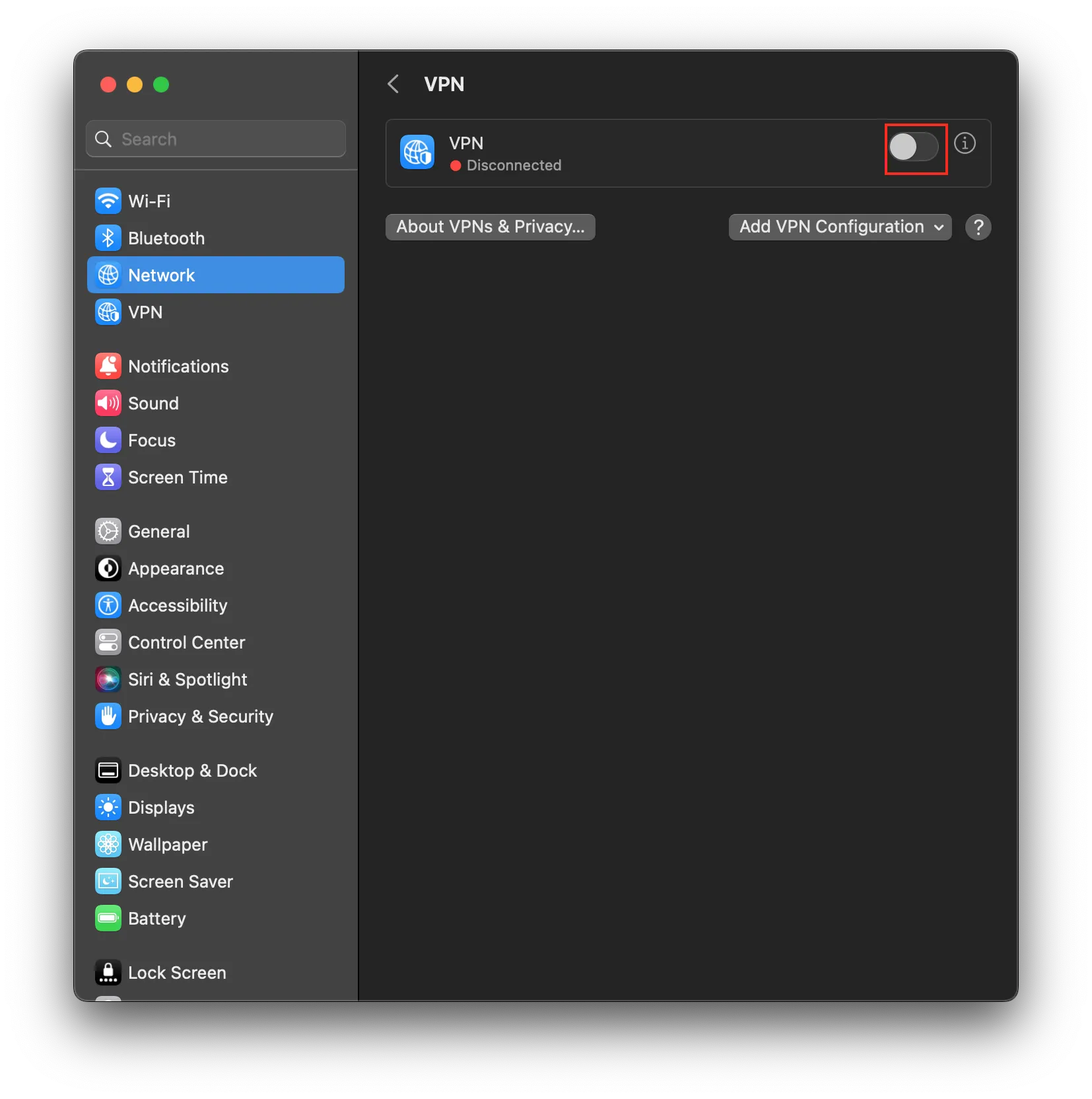

Save the highlighted settings by clicking Apply, then you can click on Connect and VPN connection will start.

file

Warning

When using the L2TP/IPSEC protocol, only one active connection is allowed.
